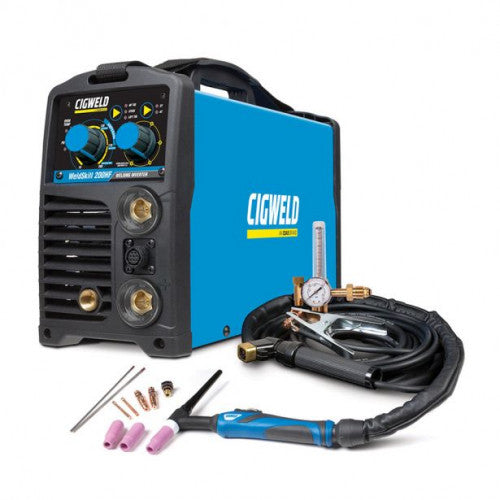

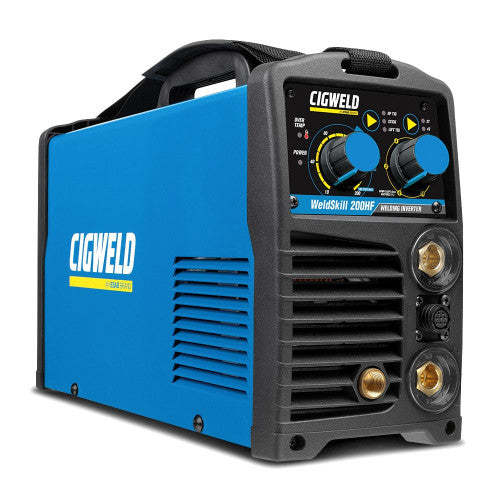

CIGWELD Weldskill 200HF

Product type: Welding Equipment

Part Number: W1008200

Brand: Cigweld

Regular price $999.00

Qty:

NEW - POWER PACK (Available until 30th September 2021 - PP200HA21) The WeldSkill 200HF is a single phase welding inverter with a...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

NEW - POWER PACK (Available until 30th September 2021 - PP200HA21)

The WeldSkill 200HF is a single phase welding inverter with a user-friendly control panel, practical push button operation for mode selection, clearly visible LED indicators and sturdy large control knob. Affordable, compact and light-weight, this unit is a great addition to the workshop ensuring the ultimate portability in light TIG fabrication and stainless steel work for the Tradesman or Maintenance Worker.

The WeldSkill 200HF is supplied standard with features such as Arc Force, Down Slope Control (2T & 4T), Hot Start, Post Gas Flow and Anti-Stick. In addition to its appealing design and functional features, the WeldSkill 200HF provides the added reassurance of a high quality welding inverter that complies to Australian Standards. Simply plug it into any standard 15 Amp power point and get welding right away!

FEATURES

Twist lock electrode holder
3 Year Warranty
4m long electrode holder and work leads
Push button weld mode selector with LED indicators
HF Start Function in TIG mode.

SPECIFICATIONS

Power Source Dimensions: H245mm x W145mm x D420mm
Power Source Mass: 8.2 KG
Fan Cooled
Welder Type: HF TIG, Lift TIG and Stick
Australian Standard AS 60974.1-2006 / IEC 60974-1
Single Phase
Nominal Supply Voltage 240V AC å± 10%
Nominal Supply Frequency 50/60 Hz
Welding Current Range TIG: 10 - 200 A
Welding Current Range STICK: 10 - 180 A
Nominal DC Open Circuit Voltage 75 V
Factory Fitted Supply Plug Rating 15 Amps
Effective Input Current (I1eff ) 15 Amps
Maximum Input Current (I1max) 33.9 Amps
Minimum Single Phase Generator Recommendation: 7.6 kW (9.5 kVA @ 0.8 PF)
STICK (MMAW) Welding Output, 40å¼C, 10 min. 180 Amps @ 20% Duty Cycle
TIG (GTAW) Welding Output, 40å¼C, 10 min. 200 Amps @ 30% Duty Cycle
Protection Class IP21S
