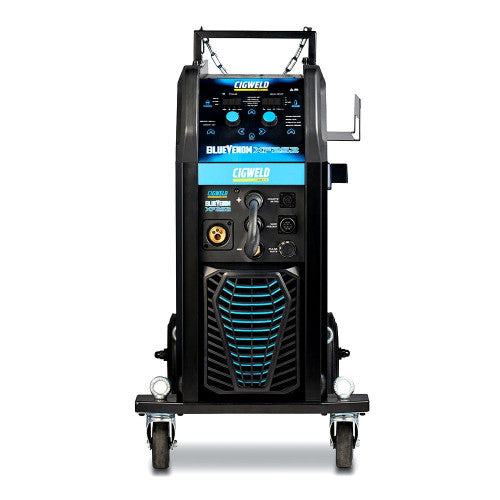

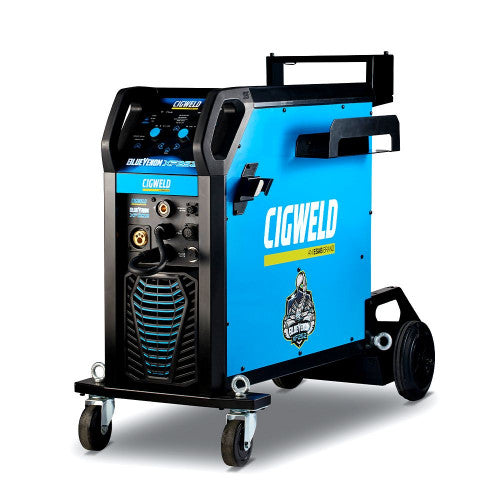

The new BlueVenomXF252 is a 3-in-1 multiprocesswelding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!
As a compact unit you will have access to XtraFunctions that allows the machine to be used for standard MIG / STICK / TIG DC-Lift processes, or as a Synergic MIG with Plate Thickness Selection as standard.
To take it a step further, the XF252 can connect to the All-New 4R-Roverremote wirefeedsystem(sold separately) -a plug n' play, 4 Roll wire driveunit that you can setup where you need it.Need it on a gantry or boom?No problem, with the 8m interconnection cable and in-built hanging mount, you can! PLUS, its designed specifically with a low mount handle making this little gem as compact a 300mm wire spool system can be!
The BlueVenomXF252 is fitted with Input Supply Rating Settings for 15A or 25A that is selectable via the Advanced Setting Menu using a 3 Digit Pin Code. It delivers a maximum output of 250Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 1.0mm up to 14mm. In STICK mode the machine is capable of welding metals from 1.6mm up to 20mm in thickness.
Features:
4x Roll Wire Drive system
300mm Diameter Spool Capability and includes 200mm spool adapter

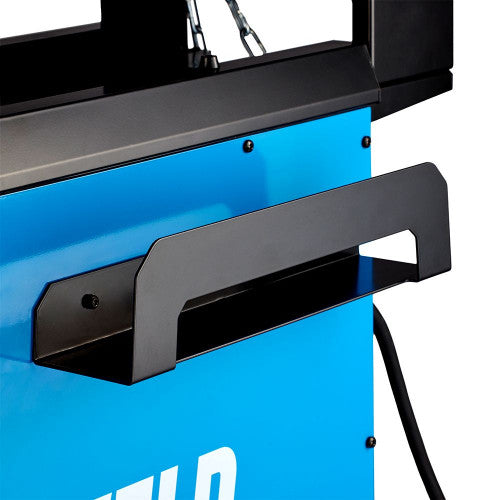

MIG Gun holder and cable management bracket
Engineered Gas Cylinder holder for up to ‘G’ Size cylinders

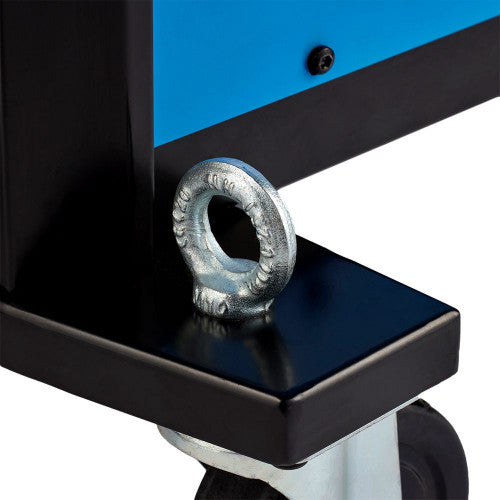

4-Point Lifting Lugs for safer and convenient maneuverability
Locking brackets for 4R-Rover to avoid wirefeedersliding
MIG Adjustable Wire Burnback
MIG Crater Fill function in 2T & 4T
MIG Side door wire installation, side loader
MIG Anti de-spooling safety feature
MIG PulseMate, Spool Gun & Push-Pull Gun Compatible
STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
STICK Hot Start
STICK Arc Force
TIG Foot Control Compatible
TIG Dial Remote Torch Compatible
Specifications:
Nominal Supply Voltage: 230/240 VAC ± 15%
Nominal Supply Frequency: 50/60Hz
Nominal DC Open Circuit Voltage MIG Weld Mode: 53V
Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
Open Circuit Voltage (VRD Off) Stick Weld Mode: 53V
Open Circuit Voltage Lift TIG Weld Mode: 53V
Supply Lead and Plug Rating:
15A Ratings below apply to the Factory Fitted 2.5mm2 Supply Lead & 15A Plug
25A Ratings below apply to an Upgraded 4mm² Supply Lead & 25A Plug Fitted
MIG Mode Welding Current Range:
15A: 30-220A
25A: 30-250A
Stick Mode Welding Current Range:
15A: 20-205A
25A: 20-230A
TIG DC Lift Mode Welding Current Range:
15A: 20-250A
25A: 20-250A
Effective Input Current (l1eff)
15A: 14.8 Amps (230VAC)
15A: 14.2 Amps (240VAC
25A: 22.7 Amps (230VAC)
25A: 21.8 Amps (240VAC)
Maximum Input Current (l1max):
15A: 33.1 Amps (230VAC)
15A: 31.7 Amps (240VAC)
25A: 38.4 Amps (230VAC)
25A: 36.8 Amps (240VAC)
Minimum Single Phase Generator Requirement for Maximum Output:
15A: 10kVA@0.8PF
25A: 12kVA@0.8PF
MIG (GMAW) Welding Output, 40°C, 10 min:
15A
220A @ 20%, 25.0V
127A @ 60%, 20.4V
98A @ 100%, 18.9V
25A:
250A @ 35%, 26.5V
191A @ 60%, 23.5V
148A @ 100%, 21.4V
Stick (MMAW) Welding Output, 40°C, 10 min:
15A:
205A @ 20%, 28.2V
118A @ 60%, 24.7V
92A @ 100%, 23.7V
25A:
230A @ 35%, 29.2V
176A @ 60%, 27.0V
136A @ 100%, 25.4V
TIG DC Lift (GTAW) Welding Output, 40°C, 10 min
15A:
250A @ 20%, 20.0V
144A @ 60%, 15.8V
112A @ 100%, 14.5V
25A:
250A @ 35%, 20.0V
191A @ 60%, 17.6V
148A @ 100%, 15.9V
Protection Class: IP21
Number of Phases: Single Phase
Cooling: Fan Cooled
Standards: AS 60974.1:2020 / IEC 60974-1:2019 EN 60974-10:2021
Dimensions (L x W x H): 1075mm x 460mm x 865mm
Weight: 55kg
Warranty:
3 Year Warranty with 6 Months Extended Warranty When Registered Online Covered by Cigweld
|
