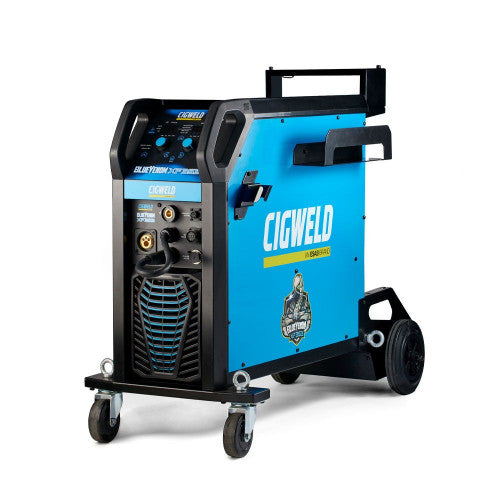

The new BlueVenom XF353 is a 3-in-1 multiprocess welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!
Includes:
BlueVenom XF353 Power Source
MIG Gun BZ36 “Style”, 4m, Euro
Work Clamp 3OOA with 4m Lead
Twistlock Electrode Holder 4OOA with 4m Lead
Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
Gas Regulator/Flowmeter
Quick Connect Gas Hose 3m
Operating Manual
Features:
4x Roll Wire Drive system
300mm Diameter Spool Capability and includes 200mm spool adapter
MIG Gun holder and cable management bracket
Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
4-Point Lifting Lugs for safer and convenient maneuverability
Locking brackets for 4R-Rover to avoid wirefeeder sliding
MIG Adjustable Wire Burnback
MIG Crater Fill function in 2T & 4T
MIG Side door wire installation, side loader
MIG Anti de-spooling safety feature
MIG PulseMate , Spool Gun & Push-Pull Gun Compatible
STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
STICK Hot Start
STICK Arc Force
TIG Foot Control Compatible
TIG Dial Remote Torch Compatible
Specifications:
Cooling: Fan Cooled
Number of Phases: Three Phase
Voltage: 400 VAC ± 15%
Frequency: 50/60Hz
Welding Current Range (MIG mode): 30-350A
Welding Current Range (Stick mode): 20-300A
Welding Current Range (TIG DC Lift): 20-350A
Voltage MIG Weld Mode: 86V
Voltage (VRD On) Stick Weld Mode: <35V
Voltage (VRD Off) Stick Weld Mode: 85V
Effective Input Current (l1eff): 12.4 Amps
Maximum Input Current (l1max): 19.6 Amps
Minimum Three Phase Generator Requirement for Maximum Output: 16kVA @ 0.8PF
Dimensions (L x W x H): 1075mm x 460mm x 865mm
Weight: 62kg
Warranty:
3-Year conditional warranty provided by Cigweld
|
